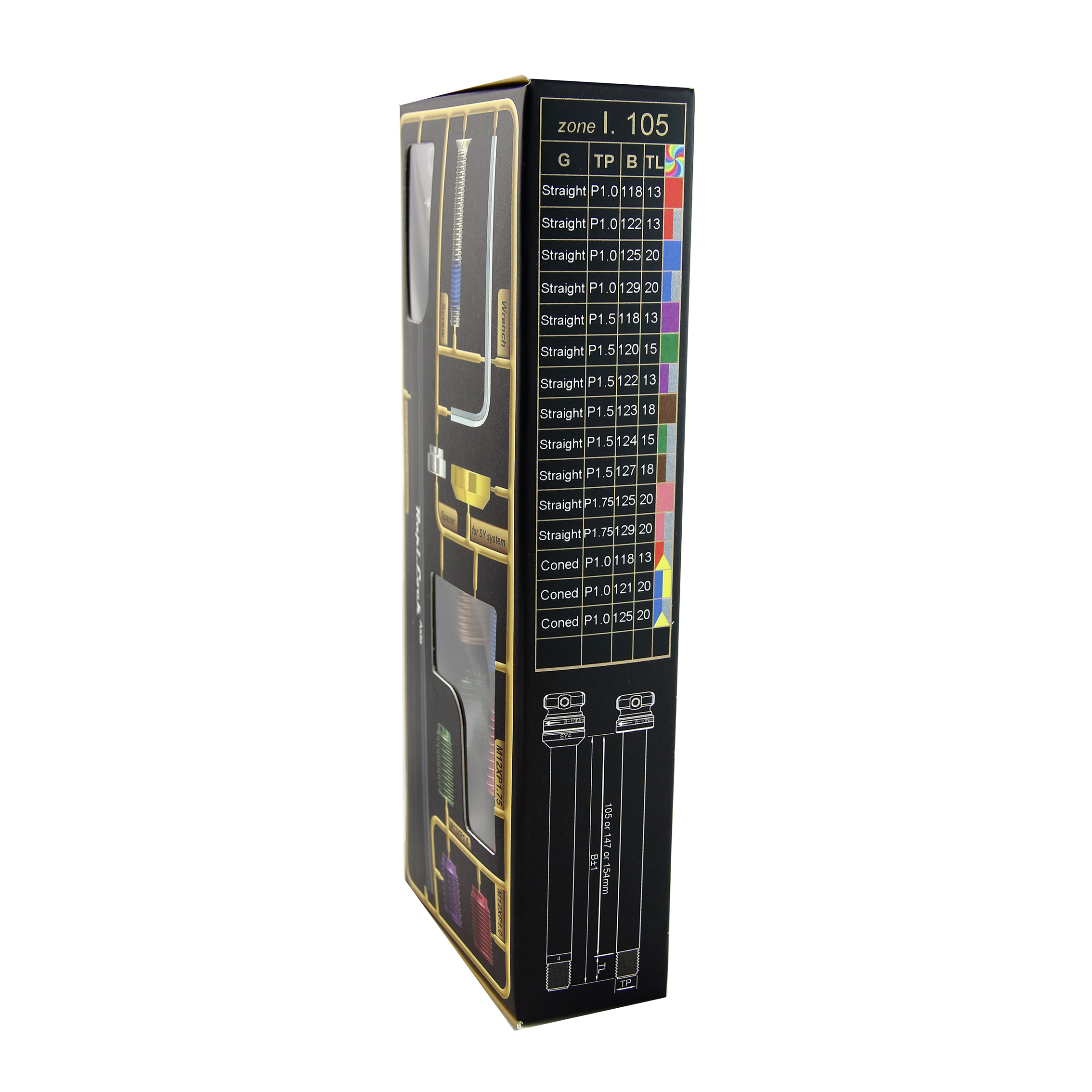

Not only to some dealers but also end users who are having trouble with measuring their axles or what they actually need to replace them while RapiLock Axle provide a measurement guide including 5 different axle lengths:105/133/147/154/164mm along with different thread pitches P1.0/P1.5/P1.75 and lengths. With mentioned system, we could cover up to 60 different standards(the popular sizes).
RapiLock Axle 105 comes with 6 different threads can pair up to 10 different specification covering at least 80% of market sizes for roadisc front wheel.

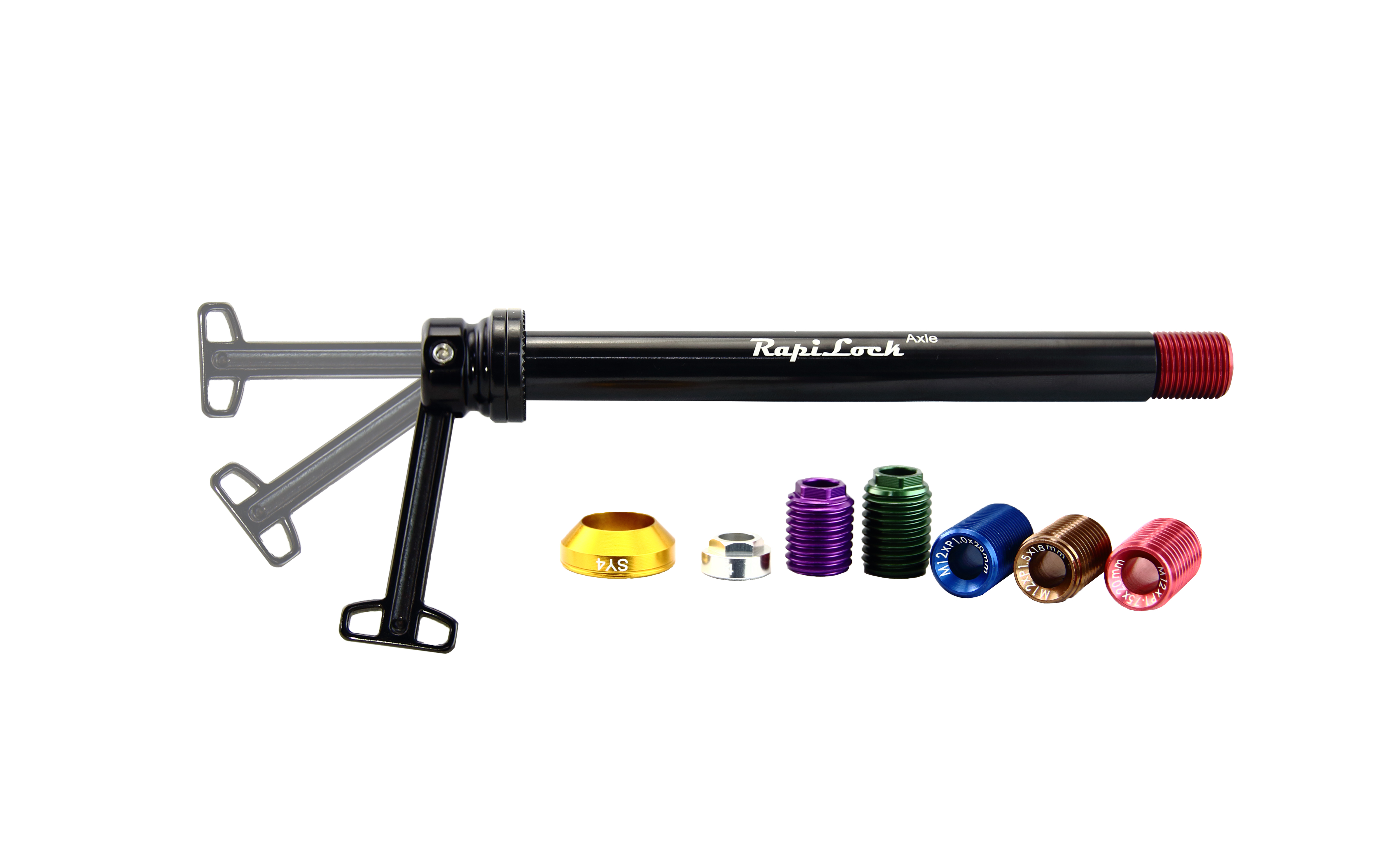

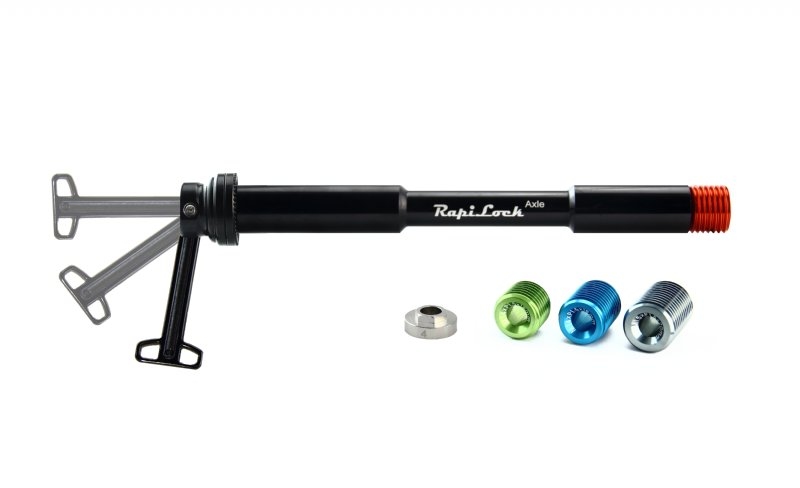

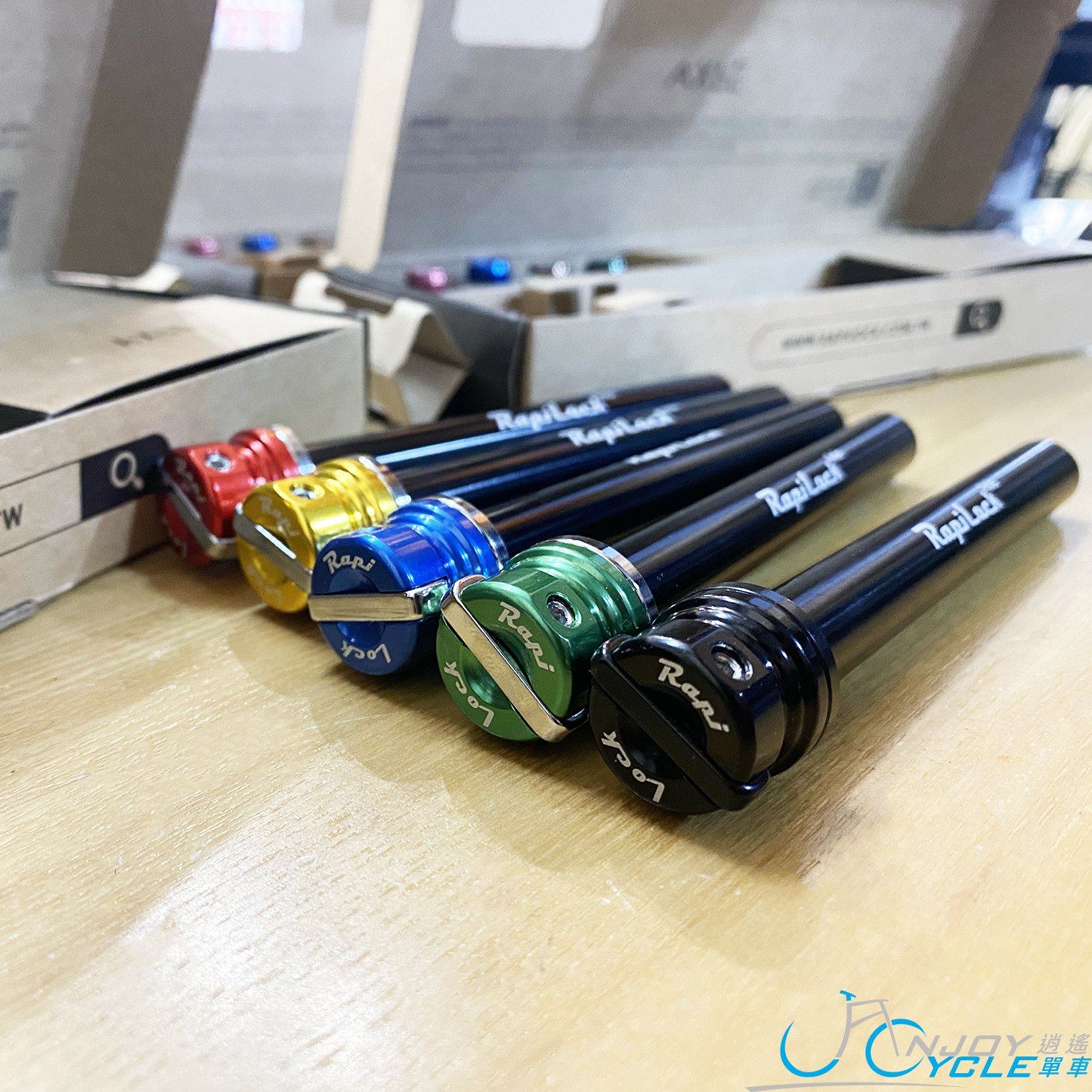

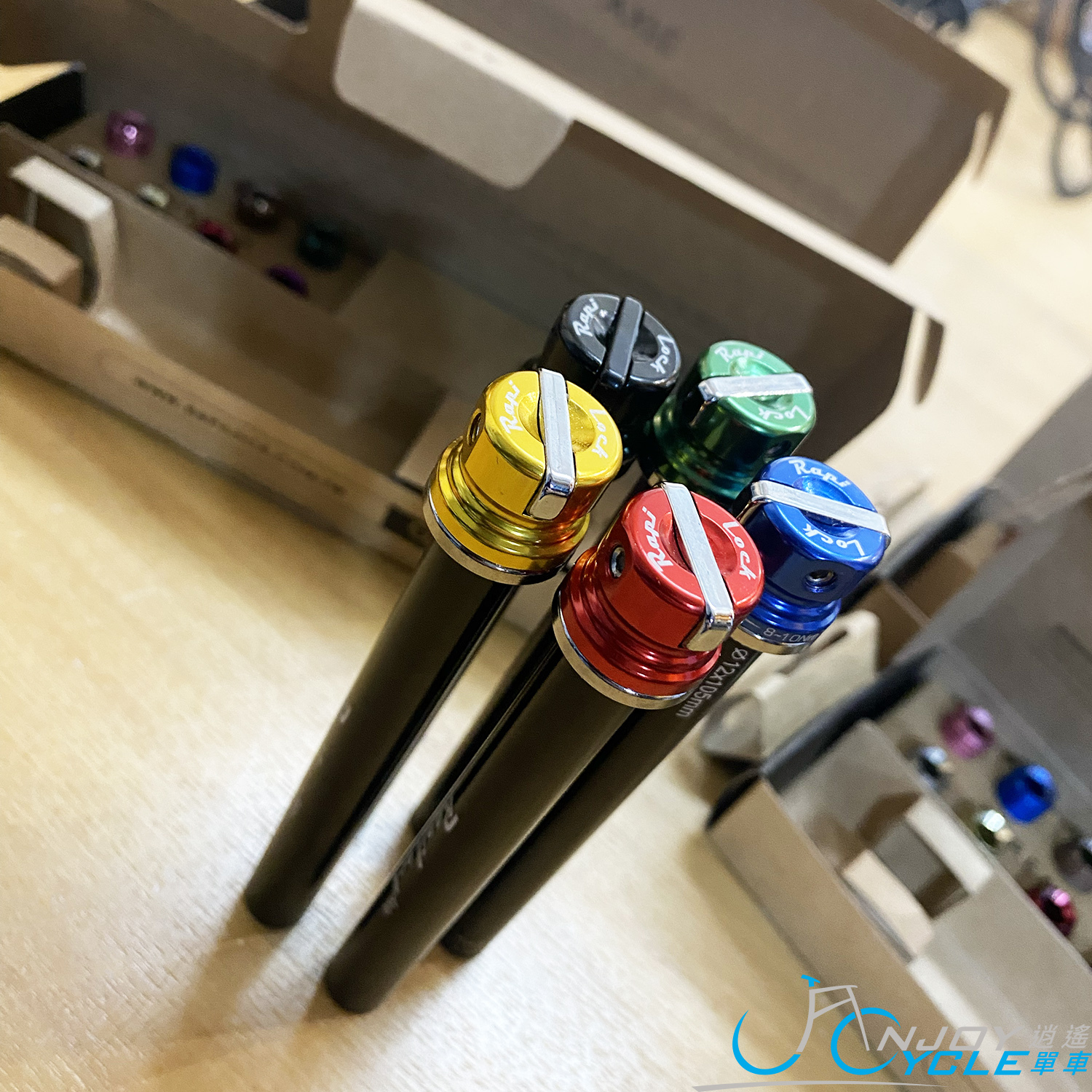

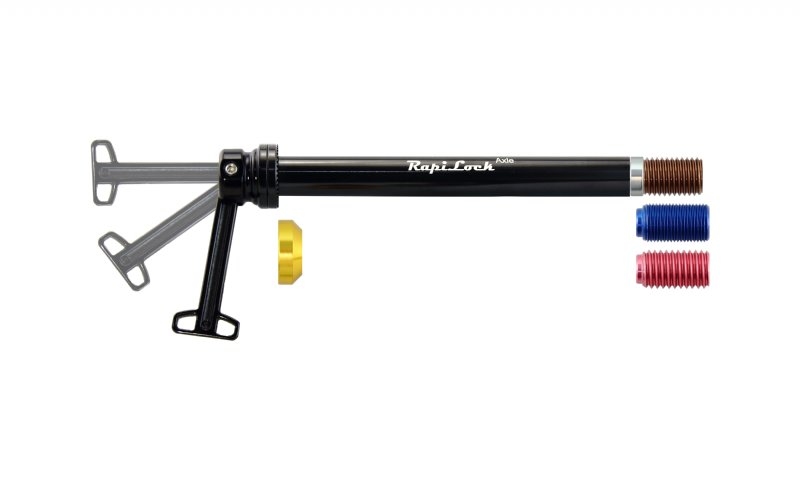

The axle is designed with an integrated lever. When the lever is not needed to install the axle, it is completely hidden inside the axle body. In this position, the appearance of the bike will be concise and it will also increase the reliability of the locking system by avoiding impact with the lever.
Weight for Reference:
M12xP1.5x118mm Thread Length 13mm=44.5g

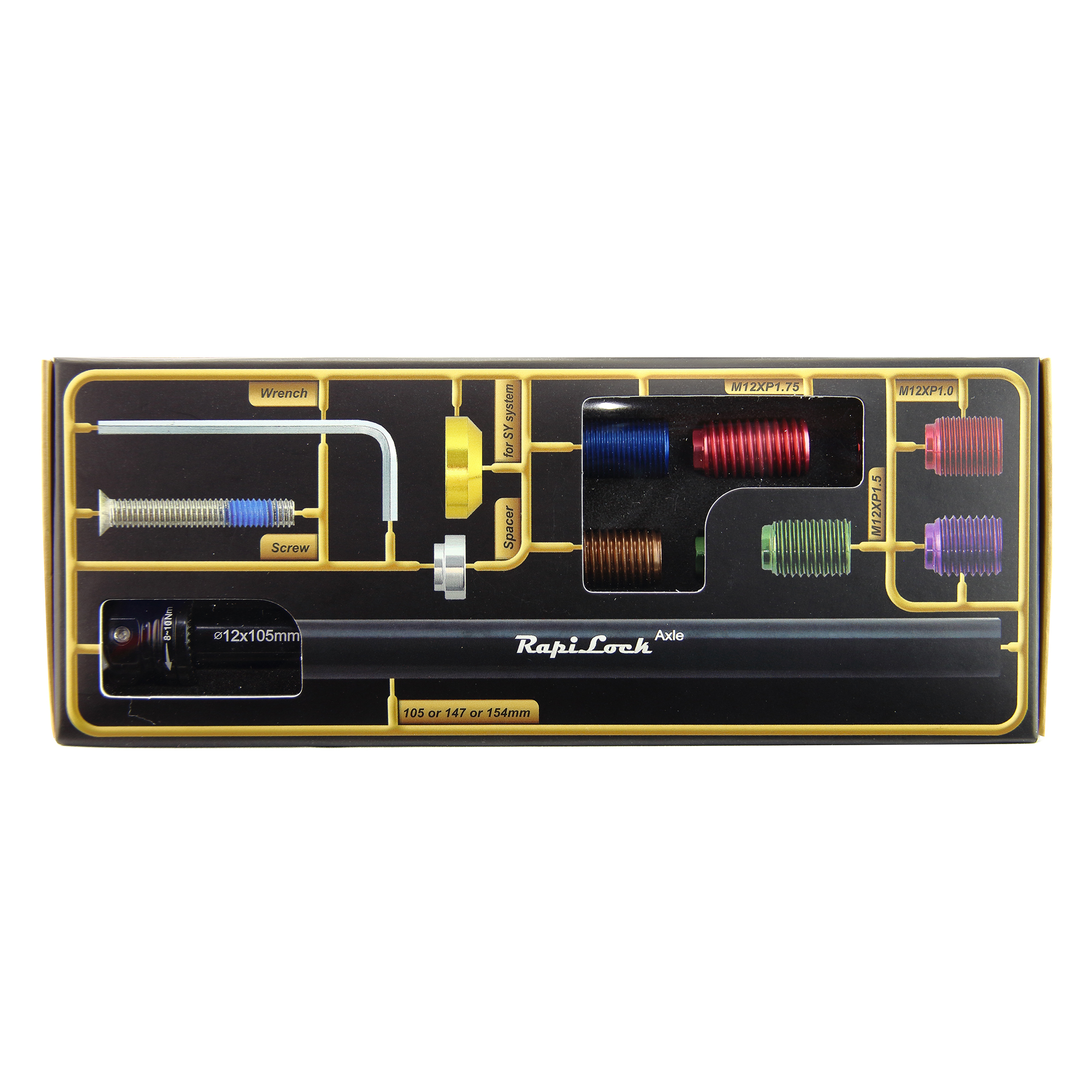

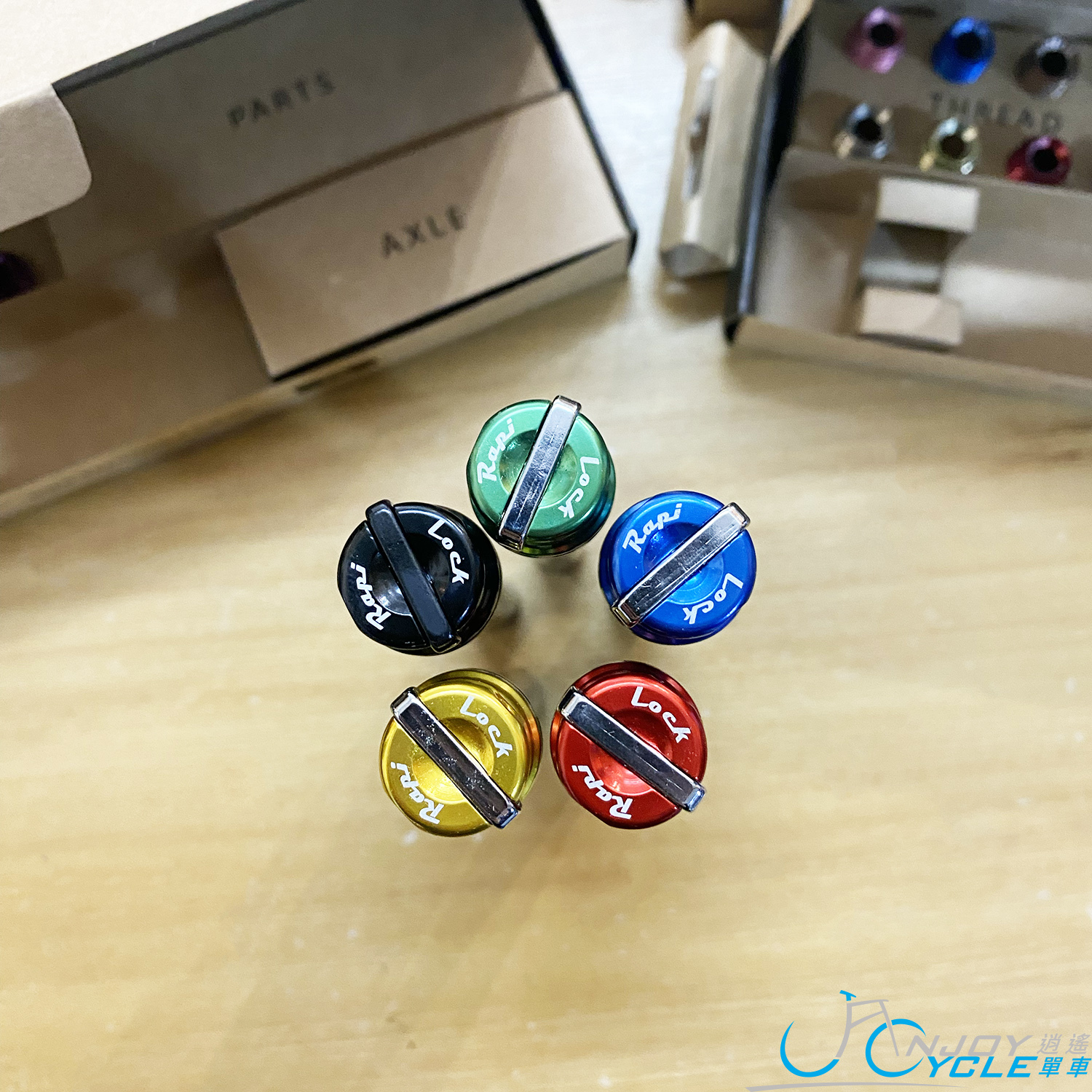

Aluminum 7075 Axle Length Ø12x105mm x1 piece

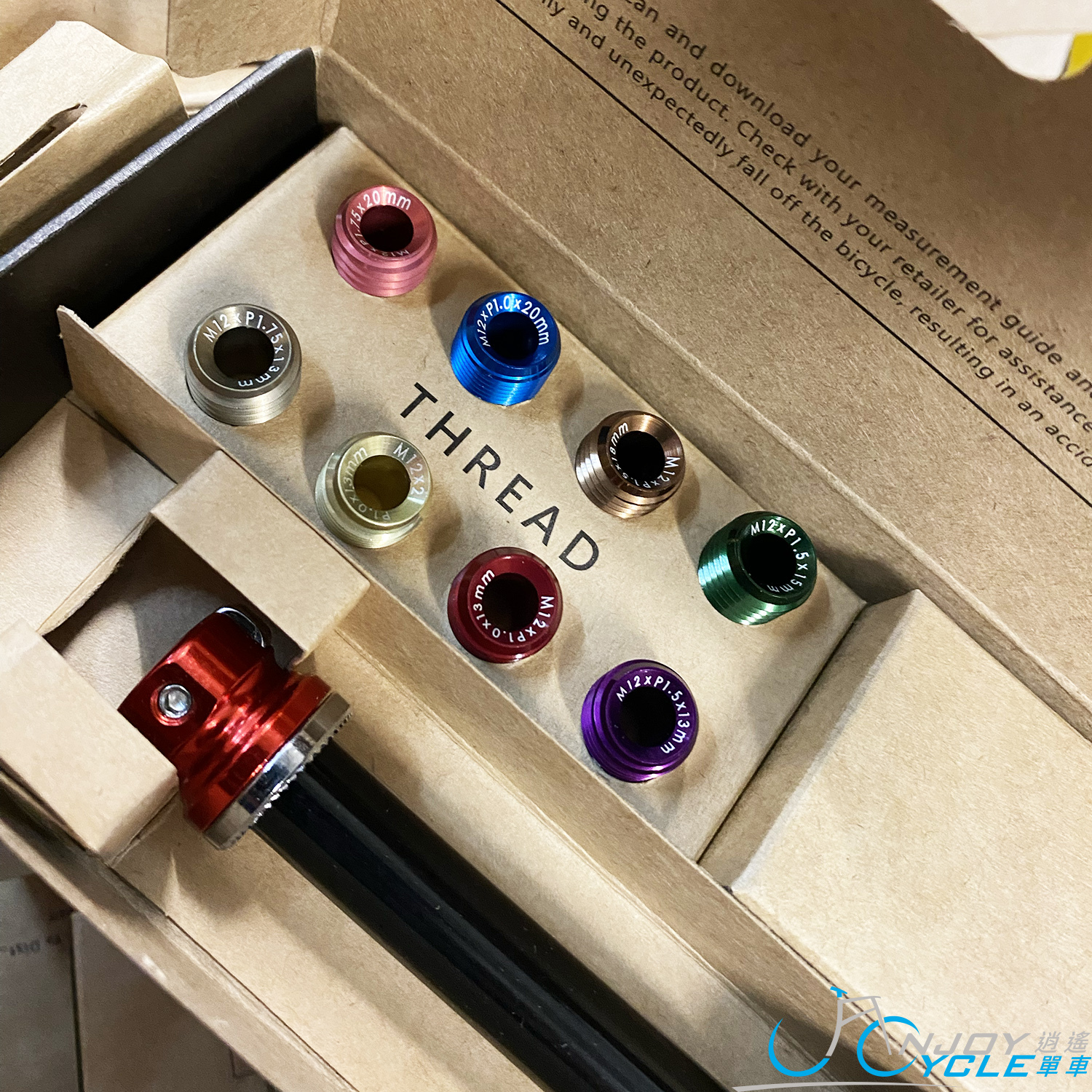

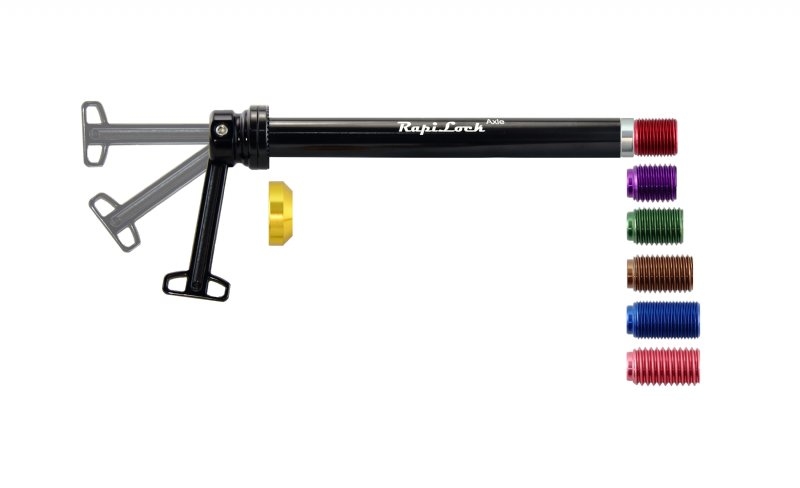

Aluminum 7075 Thread x6 pieces
-Blue: M12*P1.0 Thread Length 20mm
-Red: M12*P1.0 Thread Length 13mm
-Brown: M12*P1.5 Thread Length 18mm
-Green: M12*P1.5 Thread Length 15mm
-Purple: M12*P1.5 Thread Length 13mm
-Pink: M12*P1.75 Thread Length 20mm
Skewer x1 piece
Spacer x1 piece
Cone x1 piece
allen wrench x1 piece
All bicycle products are tested and passed according to ISO 4210 regulation.
